VEN-WB serie

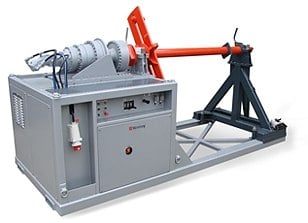

The VEN-WB is available with various load capacities: 8, 15, 25 and 40 tonnes. The maximum drum dimensions are determined in consultation with the client. The machine has a compact electrically driven hydraulic unit (400V) and has a CE Marking. The hydraulic motor is directly connected to the compact reduction gear. The machine has two directions of rotation: for winding and unwinding. The drum has a stepless speed control and the drum shaft has a hydraulically operated coupling.
Specifications
- Various load capacities: 8, 15, 25, 40 tonnes
- Maximum drum dimensions in consultation with the client
- Compact electrically driven hydraulic unit (400V)
- Directions of rotation: winding and unwinding
- Two directions of rotation: winding and unwinding
- The drum has a stepless speed control
- Hydraulic motor is directly connected to compact reduction gear
- Drum shaft with hydraulically operated coupling
- Remote control
- CE Marking
