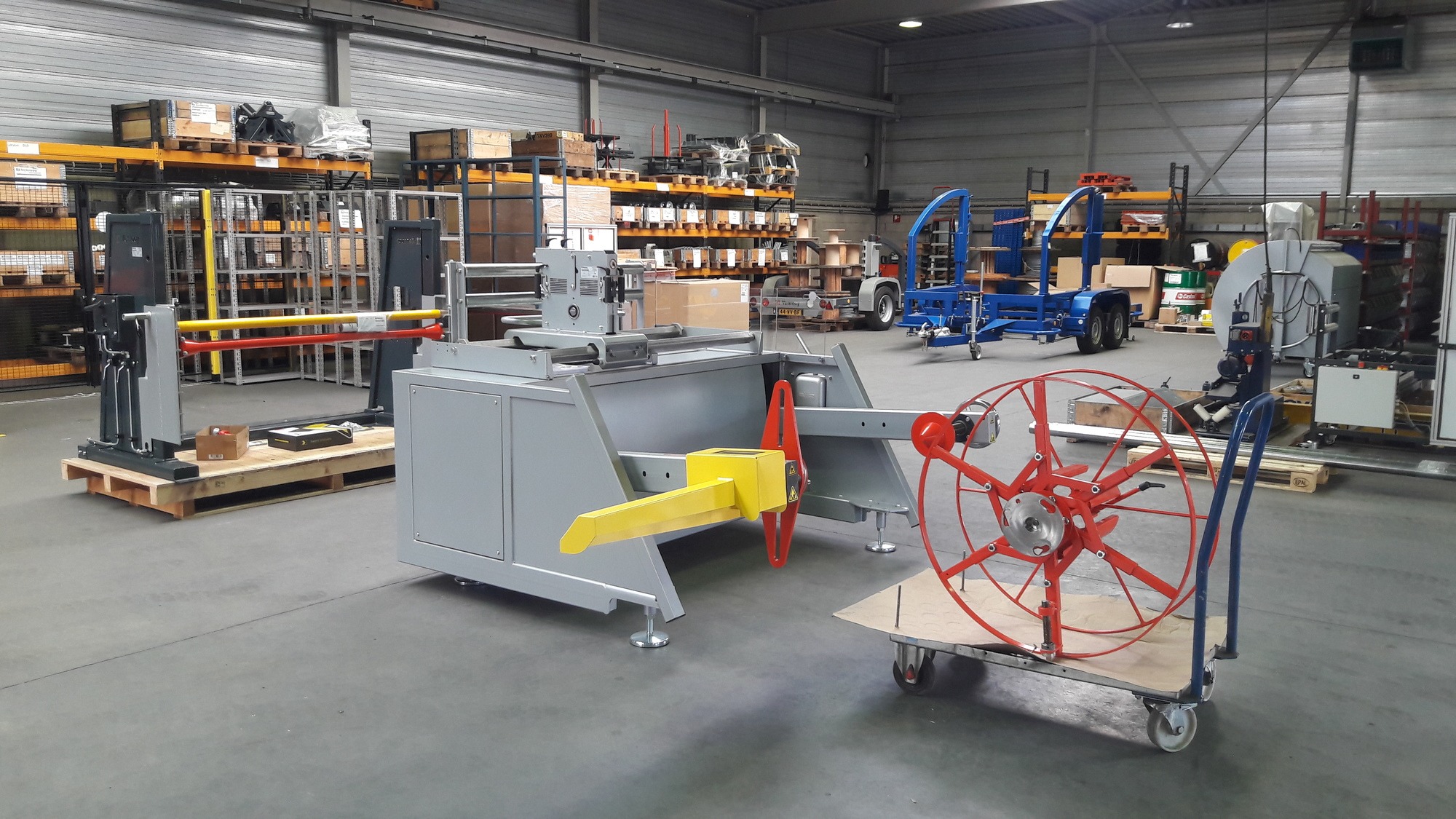

Winding machine VEN-CSE

The VEN-CSE is available with a load capacity of 1,500 kg. The machine features an electric drum drive (400V), a manual hydraulic lifting system, and a mechanical clamping system, and is equipped with a CE marking. The drum speed is infinitely adjustable. The very clear control panel allows easy operation by a single person.

Specifications

  • Load capacity: 1,500 kg

  • Drum diameter: min. Ø 600 mm – max. Ø 1,250 mm

  • Drum width: min. 400 mm – max. 900 mm

  • Electro-hydraulic lifting and clamping system (automatic re-clamping)

  • Drum speed adjustable from 0 – 50 rpm

  • Infeed roller set for cable guidance

  • Various cable length measuring devices available

  • Very clear control panel

  • Easy operation by a single person

  • With CE marking

  • Safety scanner

Options

  • Digital counter
  • Built-in cable cutter
  • Adjustable ring drum
  • Automatic cable traversing system
  • Foil roll holder
