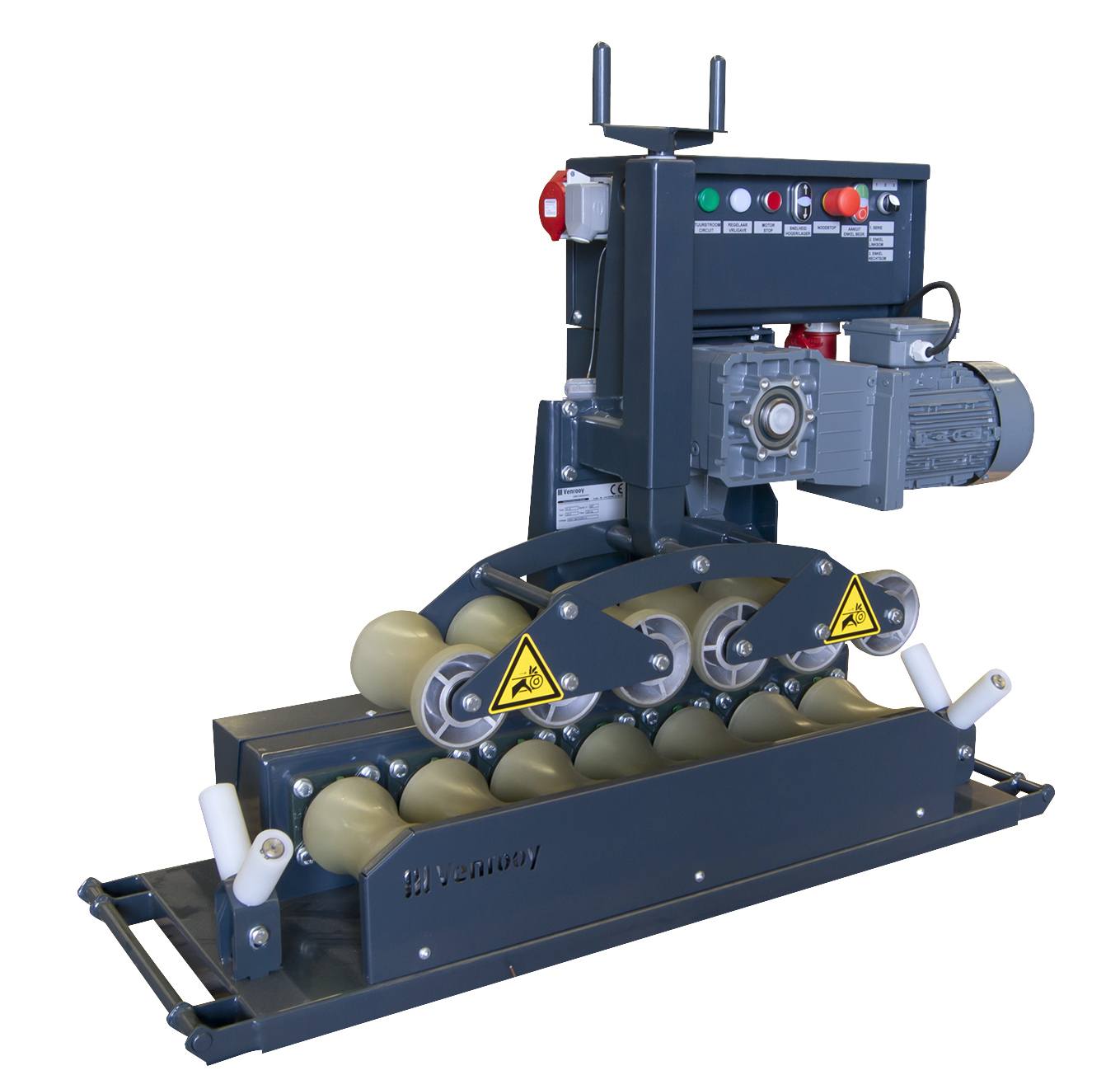

Cable pusher R-13

Cable pusher with 13 polyurethane covered aluminum diabolic rollers Traction power approx. 200 kg Electrical drive Very compact design (1250 x 410 x 850mm), very low transport height (175mm).

Specifications

  • Cable pusher with 13 polyurethane covered aluminium diabolo rollers
  • Very compact design (1250 x 410 x 850mm), extremely low transport height (175mm)
  • Electrical drive
  • Central spring loaded pressure system with 6 upper rollers and 3 pendular shafts
  • Adjustable pressure on the cable
  • Traction power approx. 200 kg
  • Electric engine easily removable
  • Weight 190 kg incl. engine, 150 kg excl. engine
  • CE- marking

Options

  • Central operation to operate multiple pushers switched in parallel
  • Storage frame for 4 pushers, easily to be lifted by a forklift
  • Blasting/metalizing
