Manual length measuring device H-35

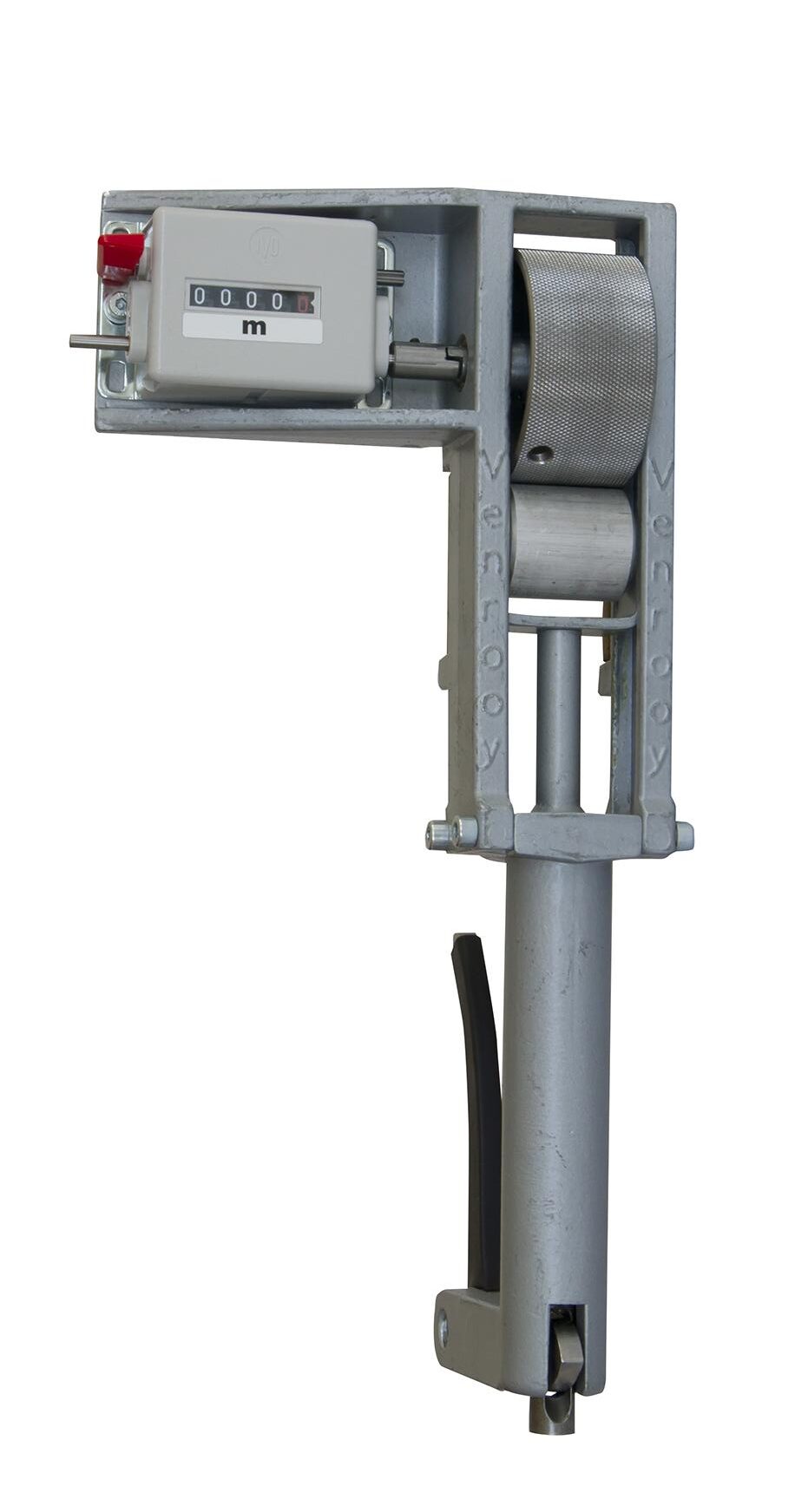

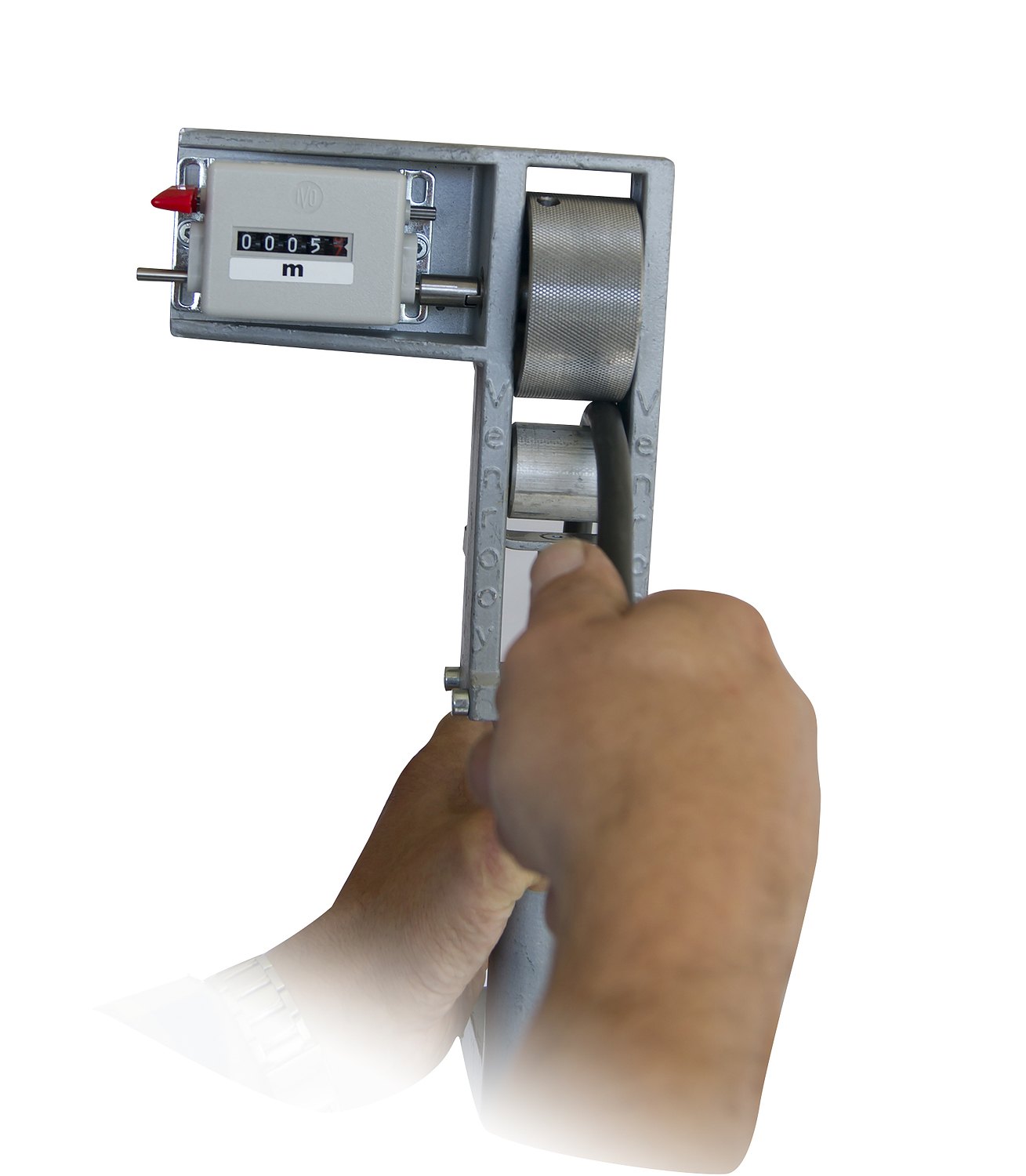

The H-35 and HS-35 can be used to manually measure wires and cables with a diameter of 3 to 35 millimetres. The HS-35 is also suitable for steel wire. The measuring wheel is made of steel and has a circumference of 20 centimetres with a knurled surface to prevent the cable from slipping. The aluminium press roller can be released by squeezing the handle. The aluminium frame weighs 1.5 kg and measures 315 x 150 x 110 mm. The counter has a measuring range of 999.9 m, which is displayed in metres and decimetres. Using an attachment, this device can also be used to measure cables with a diameter of 1 to 3 millimetres.

Specifications

  • For cable, rope and flexible hoses from Ø 3—35mm
  • Measuring range counter 999,9 meter
  • indication in meter en decimeter
  • zero setting by a lever
  • Steel measuring wheel of 20 cm round knurled surface against slippage
  • Aluminium press roller, opened with handle
  • Aluminium frame, weight 1,5 kg
  • Dimensions 315 x 150 x 110 mm

Options

  • Aid for handling cable range 1—3 mm diameter
  • Suitable for steel wire : type HS-35
  • Calibration certificate
