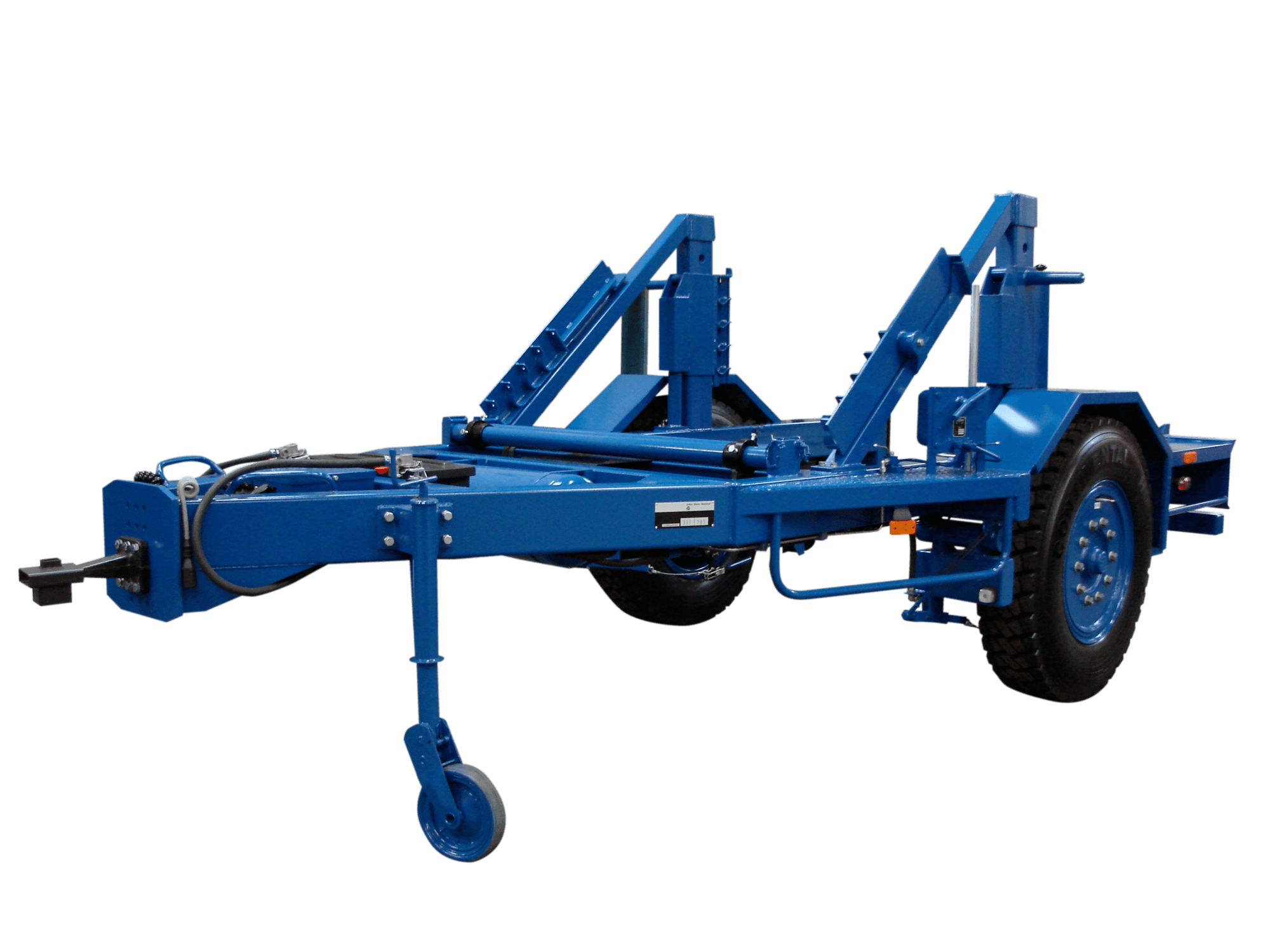

Cable drum trailer ZWV-650/850
The ZWV-650/850 is a cable drum trailer with independent suspension, CE Marking and is approved for fast traffic. The ZWV-650 has a gross load carrying capacity of 6,500 kg and a net load carrying capacity of 4,470 kg. For the ZWV-850 the gross load carrying capacity is 8,500 kg and the net load carrying capacity is approximately 6,500 kg. The cable drum trailer has a central hydraulic lifting system. The lowest insertion point of the axle is 1,100 mm, and the highest is 1,400 mm. The cable drum trailer width is 2,550 mm and the inner width is 1,670 mm. The air brake system is fitted with ABS. The trailer can be fitted with support brackets if desired, with an additional shaft for smaller drums. The ZW-7 hydraulic rewinding machine for unwinding and rewinding can be fitted to the cable drum trailer. It is possible to have the frame blasted or metallised.
Specifications
- Carrying capacity: ZWV-650 gross 6.500 kg, net 4.470 kg / ZWV-850 gross 8.500 kg, net 6.720 kg
- Air-pressure brake system including ABS
- Central hydraulic lifting system
- Inner width 1.670 mm, outer width 2.550 mm
- Insertion points: ZWV-650 lowest 1.100 mm, highest 1.400 mm / ZWV-850 lowest 1.200 mm, highest 1.500 mm
- Height 2.090 mm, length 4.720 mm
- Including mud guards, nose wheel, lighting, drum shaft with locking bushes and rear bridge
- CE- marking
